Continuous asphalt mixing plant
- Application
Mainly used in the production of asphalt mixture, modified asphalt mixture, color asphalt mixture, fully meet the needs of expressway, grade roads, municipal roads, airports, ports etc
- Capacity
20-80T/H

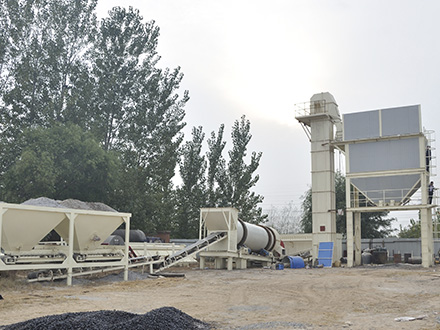

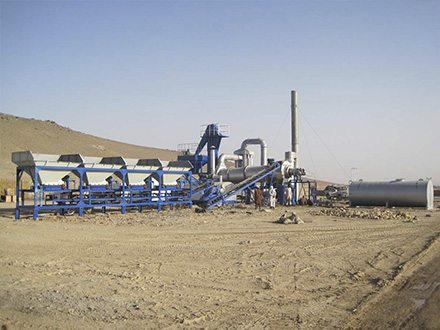

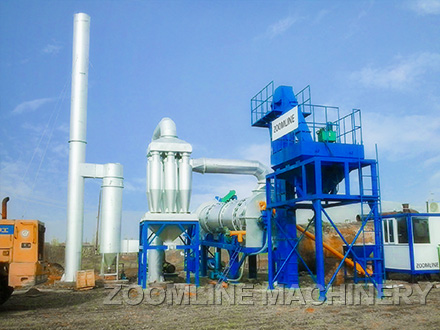

Continuous Drum Asphalt Mixing Plant
Economical and highly portable alternative to batch asphalt mixing plants
ZAP-C(M) models are available from 20TPH to 80TPH
Continuous drum asphalt mixing plant is very different with batch asphalt mixing plant. It produce the asphalt mixture in the drum which also dry the aggregate continuously.
• The structure is simple and modular design, easily transport and installation
• The investment of plant is lower than batch mixing plant
• Counter current drying drum design, drying efficiency is high, save energy
• Scraper type elevator delivery asphalt mixture cleaning and smoothly
• Multi-fuel burner
• Fully automatic controls
Structure
Options:
• Asphalt mixture storage silo
• Diesel, heavy oil, gas, coal or multi-fuel burners
• Filler system
• Bag house or water dust collector
• Fiber additive system
• Recycling asphalt plant
• Mobile/portable wheeled chassis as optional
• The structure is simple and modular design, easily transport and installation
• The investment of plant is lower than batch mixing plant
• Counter current drying drum design, drying efficiency is high, save energy
• Scraper type elevator delivery asphalt mixture cleaning and smoothly
• Multi-fuel burner
• Fully automatic controls
Cold Aggregate Feeding System
- The belt feeder use frequency conversion speed control, speed adjust rang is wide, high working efficiency.
- On the sand bin, there is vibrator, so it can guarantee normal working.
- The conveyor belt use circular belt without joint, steady running and long performance life.
- Mobile/portable wheeled chassis as optional.
- The application of latest international weighting technology, can guarantee the precision of each material, has a revolutionary innovation compared with traditional continuous asphalt mixing plant.

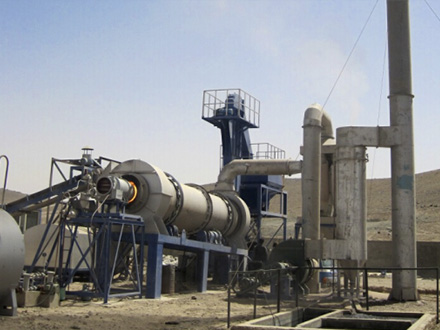

Drying System
- Counter current drying drum design, drying efficiency is high, save energy
- Diesel, heavy oil, gas, coal or multi-fuel burners.
- Integrated highly efficient burner on one chassis.
- Recycling asphalt plant and filler system as optional.
- Mobile/portable wheeled chassis as optional.
Dust Collecting System
- Bag house secondary dust filter control emission be lower than 20mg/Nm3, eco-friendly.
- Adopt USA Dopont NOMEX filter bags, high temperature resistance and long service life.
- Intelligent temperature and control system.
- Mobile/portable wheeled chassis as optional.
Control system
- Adopt Germany SIEMENS electrical element, working stably even in harsh working environment.
- Adopt Japan ORMON PLC and touch screen, have high data processing capacity, various operation data can be saved real-times.
- Multi-language compatibility, display language can be selected according to the customer’s preference.
| Items | ZAP-C(M)20 | ZAP-C(M)40 | ZAP-C(M)60 | ZAP-C(M)80 |
| Plant Capacity | 20t/h | 40t/h | 60t/h | 80t/h |
| Cold Aggregate Feeding System | ||||
| Hopper capacity | 3x4m3 | 4x4m3 | 4 x 6.5m3 | 4 x 6.5m3 |
| Belt capacity | 40t/h | 60t/h | 80t/h | 100t/h |
| Drying System | ||||
| Drying drum size | 1000x4500mm | 1200x5000mm | 1500x6500mm | 1500x6500mm |
| Drying capacity | 15-25t/h | 40-50t/h | 60-70t/h | 80-100t/h |
| Burner (oil) | 40-130kg/h | 70-300kg/h | 100-400kg/h | 60-600kg/h |
| Fuel consumption (oil) | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t |
| Dust Collecting System | ||||
| Exhaust Fan power | 5.5kw | 7.5kw | 30kw | 30kw |
| Finished Asphalt Silo | 2m3 | 2.5m3 | 4.5m3 | 4.5m3 |
| Asphalt Temperature | 130-160 ℃ | 130-160 ℃ | 130-160 ℃ | 130-160 ℃ |
| Total Power | -27kw | -57kw | -92kw | -100kw |
Plant capacity is base on standard working condition as followings:
Atmospheric pressure | 760mmHg |
Ambient temperature | 20℃ |
Material passing 40mm mesh | 100% |
Material passing 3mm mesh | 40% |
Material passing 74µm | ≤7% |
Aggregate temperature at discharging end of drum dryer | 160℃ |
Density of aggregate | 1650kg/m3 |
Specific heat of aggregate | 0.21kcal/kg℃ |
Filler content | 5% |
Bitumen content | 5% |
Sand content | ≤40% |
Max.aggregate size | ≤40mm |
Average moisture of cold aggregates | ≤5% |
Diesel calorific value | ≥10500Kcal/kg |
Heavy oil calorific value | ≥9850Kcal/kg |
Nature gas calorific value | ≥8000Kcal/Nm3 |
Coal calorific value | ≥5500Kcal/kg |
