Bag house filter is the main important consists of asphalt mixing plant, it’s general supporting use of cyclone dust filter(primary dust filter) to collecting cyclone can't collect the very small dust. As people is more and more strict to environmental protection requirements, bag house dust filter has been a widespread use equipment of asphalt batching plant. The dust it collected is called "secondary recovery powder.
Impulse bag house filter consists Generally, impulse bag house filter is consists of following parts:
1.Dust box
2.Filter bag
3.Filter bag keel (filter bag framework)
4.Impulse valve
5.Venturi-tube
6.Pulse Controller
7.Draft fan and pipe
8.Dust collection screw conveyor
9.Dust discharge rotary feeder
10.Temperature detection system
11.Negative pressure detection system
12.Pneumatic system
13.Other

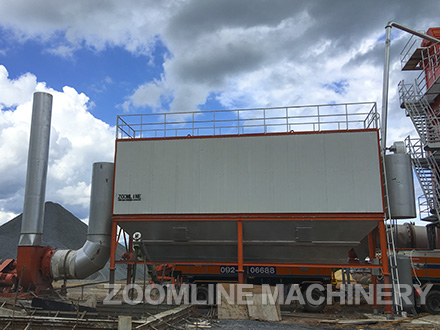

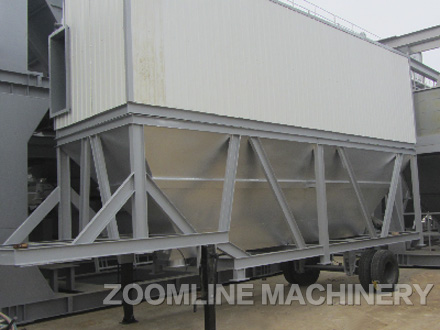

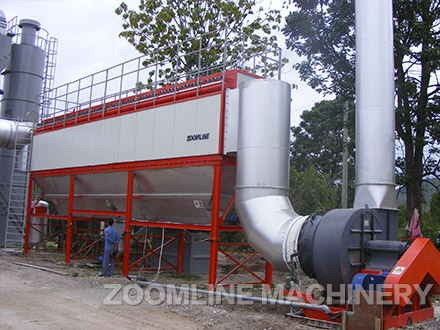

Accessory Common types of dust collector ZLMC series impulse dust collection filter, according the installation, it can be devided into fixed and mobile big categories. ① Fixed ZLMC serious impulse dust collection filter. Its main supporting ZAP-S series asphalt mixing plant. ② Mobile ZLMC series impulse dust collection filter. Its main supporting ZAP-M series mobile asphalt mixing plant, it can be designed into half hanging and drag-and-drop two different structure.
●ZLMC series impulse bag house dust filter is a special filter for asphalt mixing plant designed by ZOOMLINE company , on the basis of absorbing foreign advanced design concepts and technology. Its overcome due to asphalt mixing plant large dust brought a series problem, improve the collection efficiency, extend the lifetime of the filter bag, expanded the use scope. This make it running more stable and efficient, reduce the breakdown.
●ZLMC series impulse bag house filter mainly used in asphalt batching plant, crushing, grinding, dryer, furnace etc dust and soot dust collection system.
●Draft fan designed with special base and electric throttle controller. Depending on the different load and ventilation needs, throttle controller real-time control throttle opening, has reached the optimum removal needs and maximize save power consumption.
●Bag house dust filter import and export has a temperature detection system, real-time detecting the temperature of bag house dust filter, prevent temperature too low or too high, to avoid the condensation or burner bags condition happened.
●Dust collecting filter input port designed emergency cooling valve, negative pressure testing etc other safety facilities, ensuring the equipment working safety and reliable.
| ZLMC series impulse bag house dust filter parameters (general) | ||||||
| Model | ZLMC350 | ZLMC450 | ZLMC550 | ZLMC890 | ZLMC1150 | Remark |
| dust removal area | 400 | 550 | 550 | 700 | 1175 | Aboves are several among the many models, our company can correspondingly design and manufacturing with specifications according to actual working condition requirements. |
| supporting asphalt batching plant model | 80T/H | 120T/H | 160T/H | 240T/H | 320T/H | |
| Dust collecting screw conveyor（KW） | 2.2 | 3 | 3.7 | 2x3 | 2x3 | |
| Temperature detecting | Input\output | |||||
| Air volume（m³/h） | 35000 | 40500 | 46000 | 85000 | 120000 | |
| air pressure（Mpa） | 0.4-0.7 | |||||
